Description
NOTE: Measure your mount carefully. A rail stop is a vertical stopper located on the underside of the Nerf mount and is featured on every Nerf blaster. Each Picatinny rail comes with a relief cut on the underside to allow the rail to slide past the rail stop a given distance. Make sure your relief cut is long enough for application.
DETAILS:
Designed to fit on any Nerf mount.
NOTE: Rail stops prevent stacking multiple rails on one mount. Please double check dimensions below to ensure satisfaction.
COLORS:
– Black
INCLUDED:

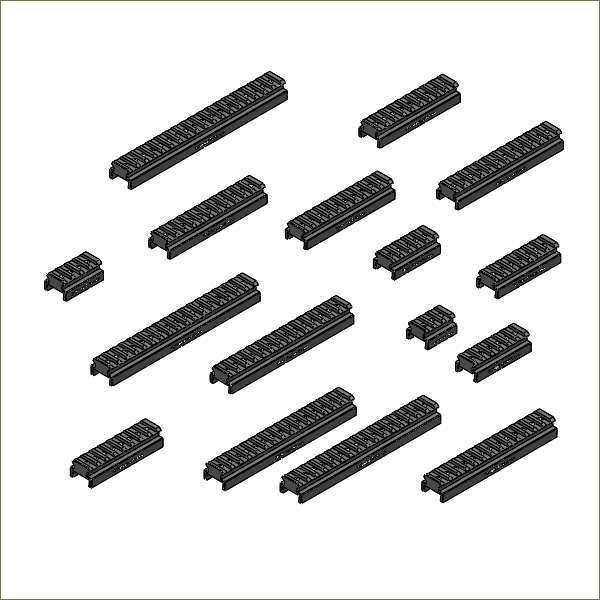

– (1) Nerf-to-Picatinny Rail
– Hardware
DIMENSIONS:
4 MOA
1.0 in L x 1.37 in W x 0.75 in H | 0.37 in Relief Cut
25.4 mm L x 34.8 mm W x 19.05 mm H | 9.4 mm Relief Cut
5 MOA
1.0 in L x 1.76 in W x 0.75 in H | 0.5 in RC
25.4 mm L x 44.70 mm W x 19.05 mm H | 12.7 mm RC
6 MOA
1.0 in L x 2.15 in W x 0.75 in H | 0.62 in RC
25.4 mm L x 54.61 mm W x 19.05 mm H | 15.75 mm RC
7 MOA
1.0 in L x 2.55 in W x 0.75 in H | 0.75 in RC
25.4 mm L x 64.77 mm W x 19.05 mm H | 19.05 mm RC
8 MOA
1.0 in L x 2.94 in W x 0.75 in H | 0.87 in RC
25.4 mm L x 74.68 mm W x 19.05 mm H | 22.1 mm RC
9 MOA
1.0 in L x 3.34 in W x 0.75 in H | 1.0 in RC
25.4 mm L x 84.84 mm W x 19.05 mm H | 25.4 mm RC
10 MOA
1.0 in L x 3.73 in W x 0.75 in H | 1.125 in RC
25.4 mm L x 94.74 mm W x 19.05 mm H | 28.58 mm RC
11 MOA
1.0 in L x 4.12 in W x 0.75 in H | 1.25 in RC
25.4 mm L x 104.65 mm W x 19.05 mm H | 31.75 mm RC
12 MOA
1.0 in L x 4.52 in W x 0.75 in H | 1.37 in RC
25.4 mm L x 114.81 mm W x 19.05 mm H | 34.8 mm RC
13 MOA
1.0 in L x 4.91 in W x 0.75 in H | 1.5 in RC
25.4 mm L x 124.71 mm W x 19.05 mm H | 38.1 mm RC
14 MOA
1.0 in L x 5.31 in W x 0.75 in H | 1.62 in RC
25.4 mm L x 134.87 mm W x 19.05 mm H | 41.15 mm RC
15 MOA
1.0 in L x 5.70 in W x 0.75 in H | 1.75 in RC
25.4 mm L x 144.78 mm W x 19.05 mm H | 44.45 mm RC
16 MOA
1.0 in L x 6.09 in W x 0.75 in H | 1.87 in RC
25.4 mm L x 154.69 mm W x 19.05 mm H | 47.5 mm RC
17 MOA
1.0 in L x 6.49 in W x 0.75 in H | 2.0 in RC
25.4 mm L x 164.85 mm W x 19.05 mm H | 50.8 mm RC
18 MOA
1.0 in L x 6.88 in W x 0.75 in H | 2.12 in RC
25.4 mm L x 174.75 mm W x 19.05 mm H | 53.85 mm RC
19 MOA
1.0 in L x 7.28 in W x 0.75 in H | 2.25 in RC
25.4 mm L x 184.91 mm W x 19.05 mm H | 57.15 mm RC
TOOLS:
You’ll need a 3/32″ hex wrench.
*Don’t have an arsenal of tools in your basement? Click HERE to purchase tools!
INSTALLATION:
Slide the rail onto the mount and tighten screws until snug.
